GenS 3XC

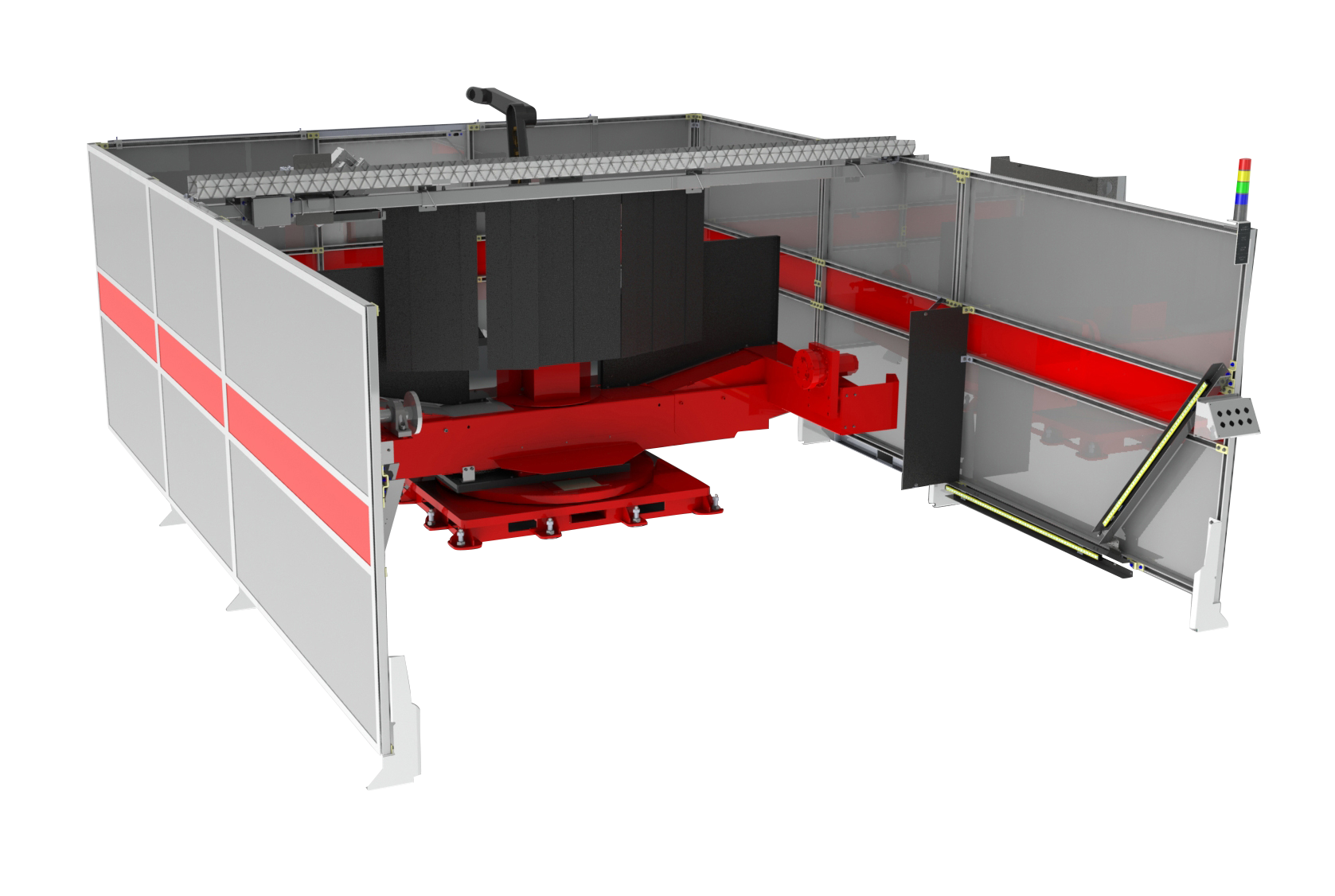

The Genesis GenS 3XC servo-driven center mount robotic welding system maximizes the utilization of the robot work envelope by placing the robot in the center of the three-axis turntable and closer to the workpiece.

Applications: —
Weight capacity: 1,000 Kg.

  • thumbnail image
  • thumbnail image
  • thumbnail image
  • thumbnail image
  • thumbnail image
Key Specifications
Base Positioner Configuration Main axis – servo driven
Main sweep index time 4.5 to 5.0 seconds
Minor axis – dual servo driven trunnions
Tool length 2.0-meters (78-inches)
Tool swing diameter 1.25-meters (49-inches)
Weight capacity 1,000-kilograms (2,204-lbs)
Base Component Configuration FANUC ArcMate 100iC or Panasonic TA-1400 G3
Lincoln i400 or Miller Auto Axcess 300
Tregaskiss, Binzel or TBi air-cooled through arm torch
Genesis torch alignment package
Safety package (includes light curtains, gate interlock and barriers)
Genesis Allen-Bradley controls package with L1 processor
Rotary ground

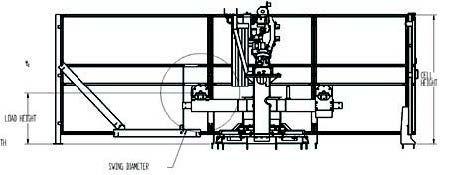

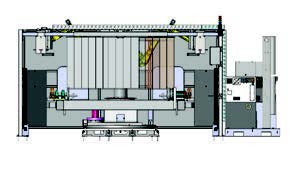

Standard Dimensional Specifications Tool length – 2.0-meters (78-inches) to 3.0-meters (118-inches)
Tool swing diameter – 1.25-meters (49-inches)
Load height  – 1.0-meter (39-inches)
Cell width – 3490-mm (137-inches) to 4510-mm (177-inches)
Cell depth – 4490-mm to (176-inches) to 5510-mm (216-inches)
Cell height  – 2600-mm (102-inches)
Standard Capacity Specifications- Weight capacity – 1,000-kilograms (2,204-lbs)
Engineering specifications for 1,000-kilograms capacity per station
Main axis:
– Out of balance – Station A to Station B 900-kilograms
– 180-degree index time under 5.0 seconds
Minor axis:
– Gearbox rated torque 1617Nm
– Gearbox ratio 161:1
– Gearbox maximum moment 2940Nm
– Motor maximum RPM 4,000
– Motor torque output 12Nm
– Nominal acceleration .5 seconds
– Allowable tool out of balance torque 250Nm
– 180-degree index time 2.0 seconds
Standard Platform Options Tool length 2.5-meters, 3.0-meters
Exposed power track cable carrier system
Smoke hood and extraction system
Off-line programming
Installation
Training programs (basic, advanced, maintenance, off-line, CRAW)
Intelligence CenterTM
Standard Component Options Robot models: FANUC, Panasonic, Motoman
Process gear: Miller, Lincoln, Fronius, Thermadyne, Hypertherm
Welding torches: Tregaskiss, Binzel, TBi, Fronius
Torch cleaners: Tregaskiss, Binzel, TBi
Controls: PanelView 1000+ Compact
Robot Workcell Selector

Get a Quote for the GenS 3XC

Download the PDF

Key Features

Productivity

  • Fast index time reduces overall
    weld cycle time
  • Multiple robot configurations
  • Center mount robot design allows
    automated unload of parts from
    weld station

Functionality

  • Quick installation – robot and positioner on unitized base
  • High utilization of robot work envelope with center robot design
  • Safer robot programming with center mount robot
  • Center mount robot design reduces
    required floor space
  • Cost efficient servo main sweep design

Reliability

  • Pre-engineered, proven design
  • Single source responsibility
  • 24-hour support service

Flexibility

  • Able to accommodate large tool
    lengths, swing diameters and high
    weight capacity
  • Easily configured to meet application
    requirements
