GenS XT

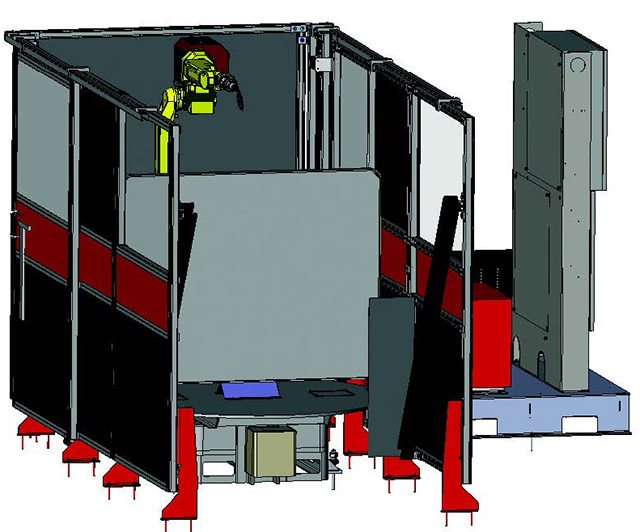

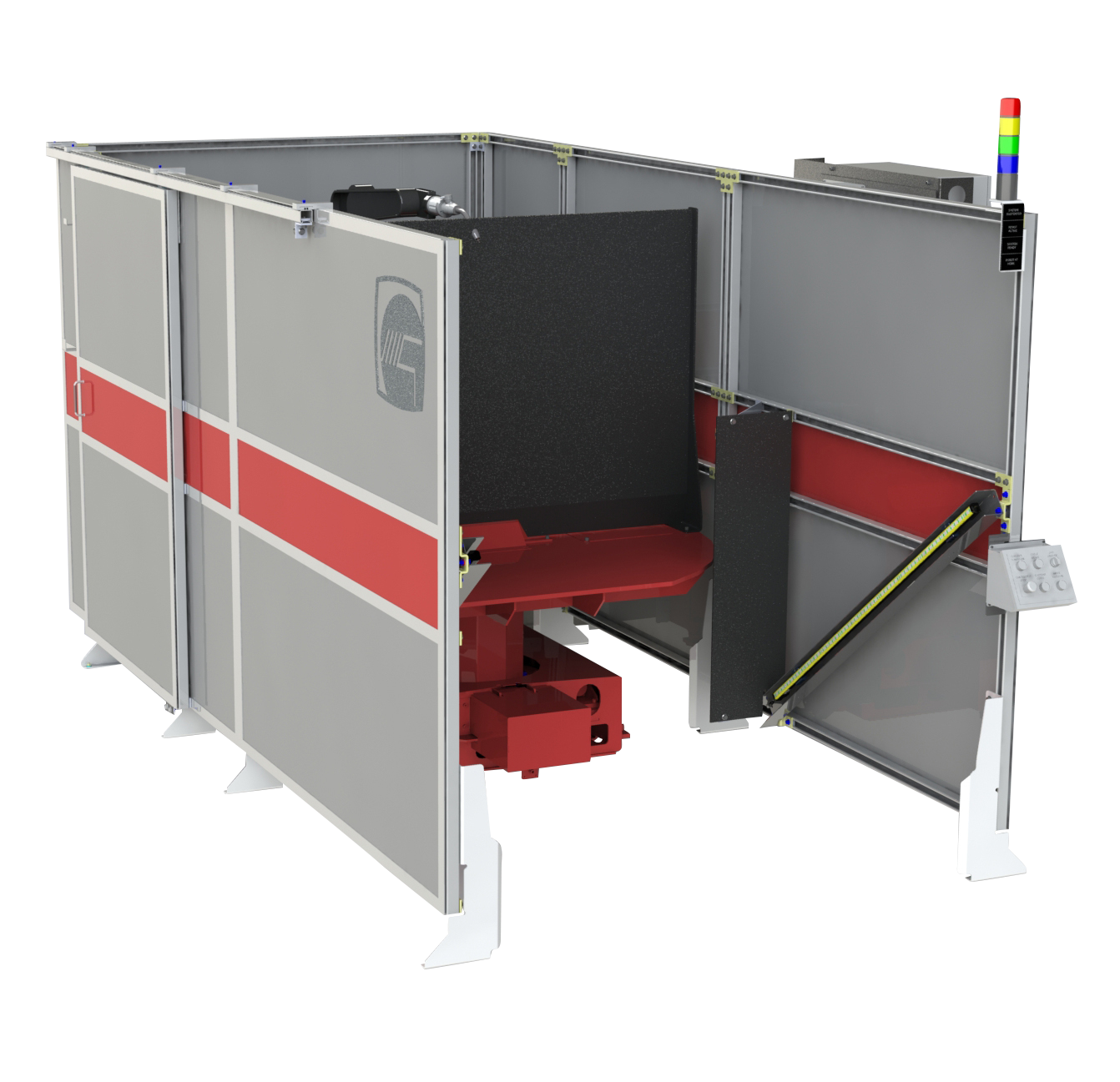

The Genesis GenS XT servo-driven flat turntable robotic welding system can handle high volume production parts that do not require repositioning during the weld cycle.

Applications: —
Weight capacity: 225 – 900 Kg.

  • thumbnail image
  • thumbnail image
  • thumbnail image
  • thumbnail image
  • thumbnail image
Key Specifications
Base Positioner Configuration Main axis – servo driven
Main sweep index time 3.0 – 4.0 seconds
Table diameter 1.0-meters (39-inches)
Weight capacity 225-kilograms (496-lbs)
Base Component Configuration FANUC ArcMate 100iC or Panasonic TA-1400 G3
Lincoln i400 or Miller Auto Axcess 300
Tregaskiss, Binzel or TBi air-cooled through arm torch
Genesis torch alignment package
Safety package (includes light curtains, gate interlock and barriers)
Genesis Allen-Bradley controls package with L1 processor

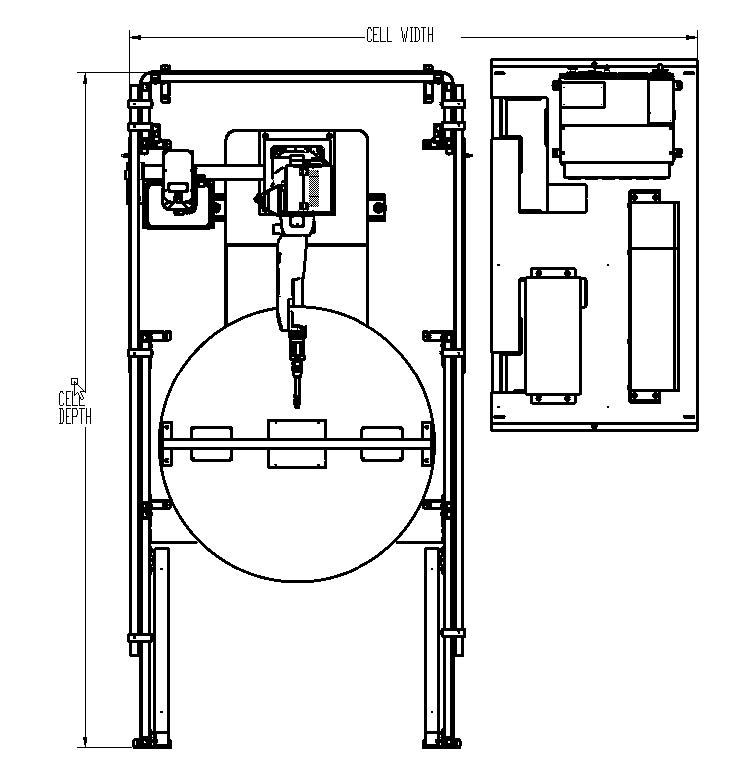

Standard Dimensional Specifications Table diameter – 1.0-meters (39-inches) to 3.5-meters (137-inches)
Table height – .66-meters (26-inches)
Cell width – 3870-mm (152-inches) to 5870-mm to (231-inches)
Cell depth – 3150-mm (124-inches) to 5650-mm to (222-inches)
Cell height – 2545-mm to (100-inches)
Standard Capacity Specifications Weight capacity – 225-kilograms (496-lbs) to 900-kilograms (1,984-lbs)
Engineering specifications for 225-kilograms to 900-kilograms
capacity per station
Out of balance – Station A to Station B 200-kilograms
180-degree index time under 4.0 seconds
Standard Platform Options Table diameter 1.5-meters, 2.0-meters, 2.5-meters, 3.0-meters, 3.5-meters
Weight capacity 550-kilograms, 900-kilograms
Robot bridge (configured for one to three robots)
Three-station configuration (with ground brush)
Four-station configuration (with ground brush)
Smoke hood and extraction system
Off-line programming
Installation
Training programs (basic, advanced, maintenance, off-line, CRAW)
Intelligence CenterTM
Standard Component Options Robot models: FANUC, Panasonic, Motoman
Process gear: Miller, Lincoln, Fronius, Thermadyne, Hypertherm
Welding torches: Tregaskiss, Binzel, TBi, Fronius
Torch cleaners: Tregaskiss, Binzel, TBi
Controls: PanelView 1000+ Compact
Robot Workcell Selector

Get a Quote for the GenS XT

Download the PDF

Key Features

Productivity

  • Fast index time reduces overall
    weld cycle time
  • Multiple robot configurations

Functionality

  • Quick installation – robot and positioner
    on unitized base
  • Cost efficient servo main sweep design

Reliability

  • Pre-engineered, proven design
  • Single source responsibility
  • 24-hour support service

Flexibility

  • Able to accommodate large table
    diameter and high weight capacity
  • Easily configured to meet application
    requirements
