GenS XTC

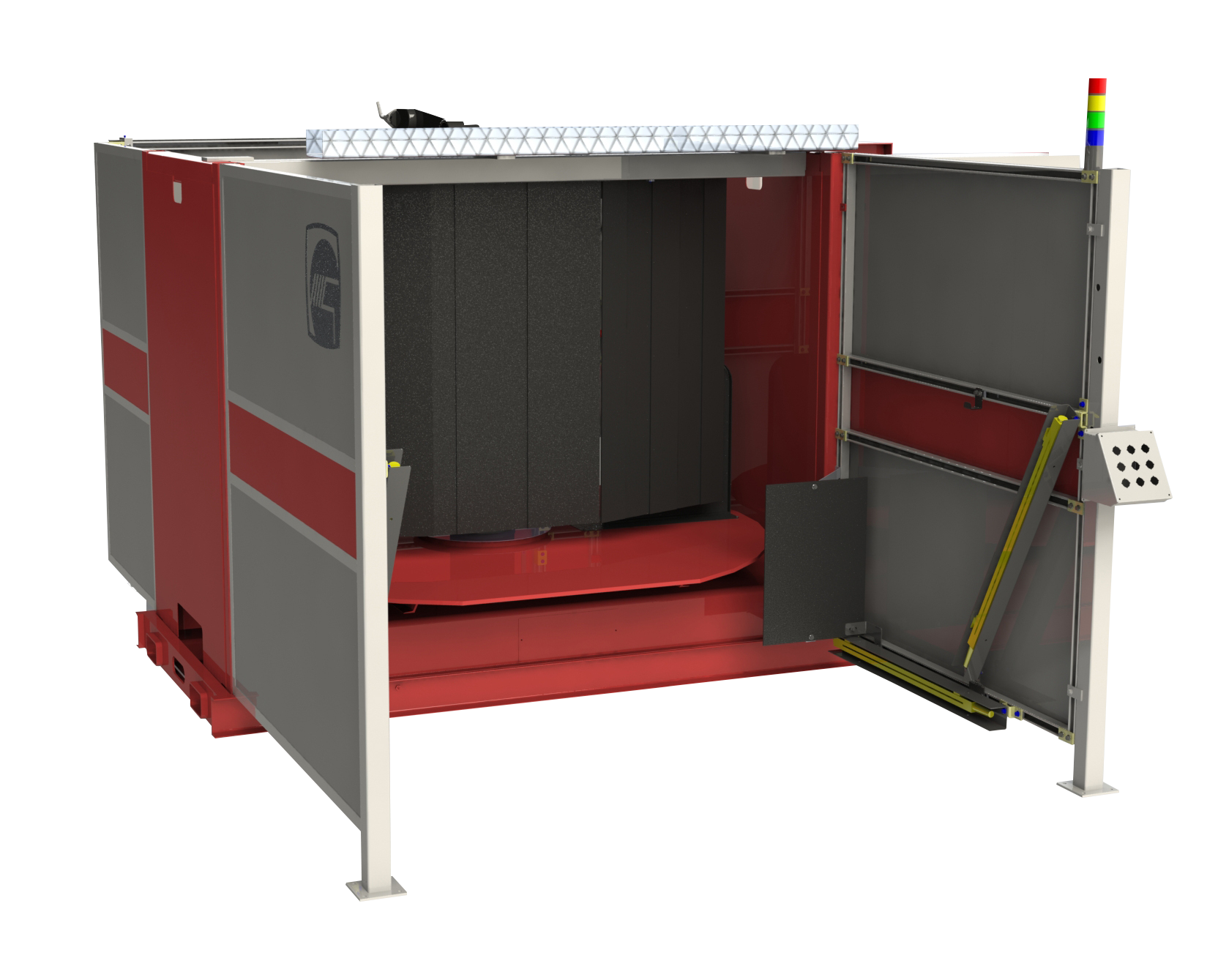

The Genesis GenS XTC robotic welding system features a servo-driven center mount robot design that maximizes the utilization of the robot work envelope by placing the robot in the center of the flat turntable and closer to the workpiece.

Applications: —
Weight capacity: 1,250 Kg.

  • thumbnail image
  • thumbnail image
  • thumbnail image
  • thumbnail image
  • thumbnail image
Key Specifications
Base Positioner Configuration Main axis – servo driven
Main sweep index time 4.5 to 5.0 seconds
Table diameter 2.0-meters (78-inches)
Weight capacity 1,250-kilograms (2,755-lbs)
Base Component Configuration FANUC ArcMate 100iC or Panasonic TA-1400 G3
Lincoln i400 or Miller Auto Axcess 300
Tregaskiss, Binzel or TBi air-cooled through arm torch
Genesis torch alignment package
Safety package (includes light curtains, gate interlock and barriers)
Genesis Allen-Bradley controls package with L1 processor

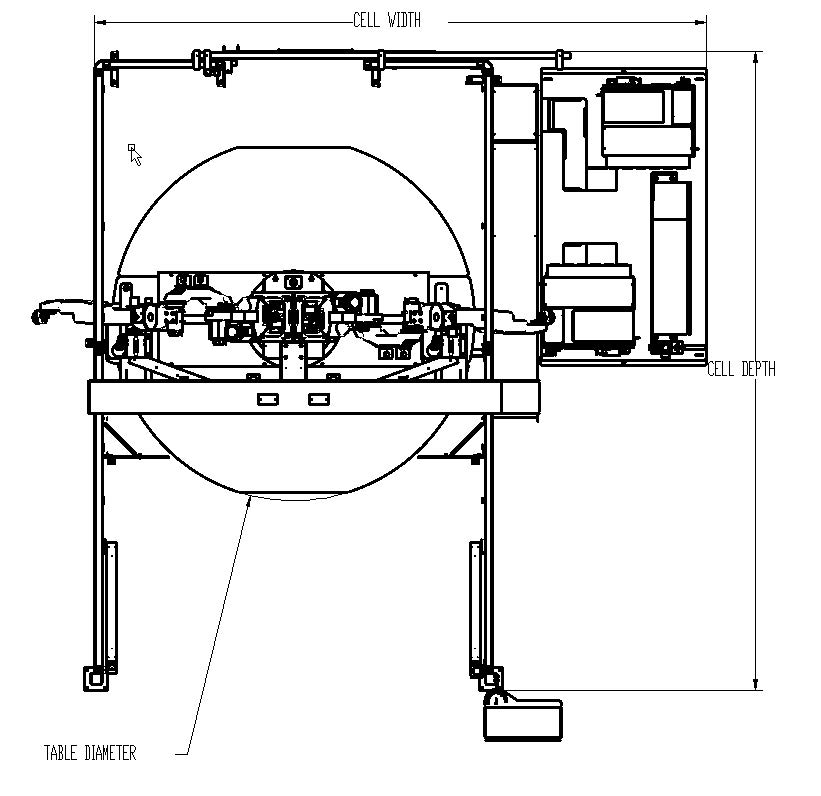

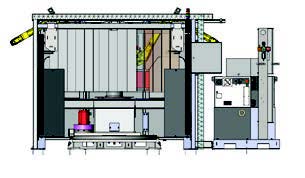

Standard Dimensional Specifications Table diameter – 2.0-meters (78-inches) to 3.0-meters (118-inches)
Table height  – 839-mm (33-inches)
Cell width – 3640-mm (143-inches) to 4640-mm to (182-inches)
Cell depth  – 3759-mm (148-inches) to 4759-mm to (187-inches)

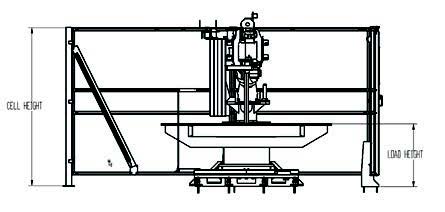

Cell height – 2451-mm to (96-inches)
Standard Capacity Specifications Weight capacity – 1,250-kilograms (2,755-lbs)
Engineering specifications for 1,250-kilograms capacity per station
Out of balance – Station A to Station B 1,125-kilograms
180-degree index time under 5.0 seconds
Standard Platform Options Table diameter 2.5-meters, 3.0-meters
Smoke hood and extraction system
Off-line programming
Installation
Training programs (basic, advanced, maintenance, off-line, CRAW)
Intelligence CenterTM
Standard Component Options Robot models: FANUC, Panasonic, Motoman
Process gear: Miller, Lincoln, Fronius, Thermadyne, Hypertherm
Welding torches: Tregaskiss, Binzel, TBi, Fronius
Torch cleaners: Tregaskiss, Binzel, TBi
Controls: PanelView 1000+ Compact
Robot Workcell Selector

Get a Quote for the GenS XTC

Download the PDF

Key Features

Productivity

  • Fast index time reduces overall weld
    cycle time
  • Multiple robot configurations
  • Design allows automated unload of parts
    from weld station

Functionality

  • Quick installation – robot and positioner
    on unitized base
  • Cost efficient servo main sweep design
  • High utilization of robot work envelope
    with center robot design
  • Safer robot programming with center
    mount robot
  • Center robot design reduces required
    floor space

Reliability

  • Pre-engineered, proven design
  • Single source responsibility
  • 24-hour support service

Flexibility

  • Able to accommodate large table
    diameter and high weight capacity
  • Easily configured to meet application
    requirements
