Pneumatic Positioners

Pneumatic Drive

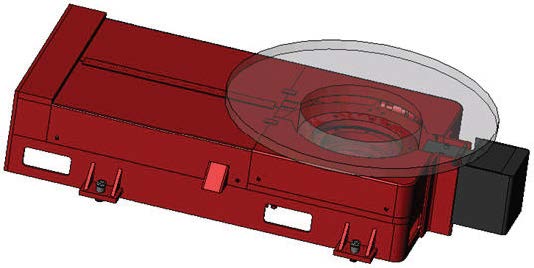

The Pneumatic Turntable is a flexible high speed system for light to heavy applications.

Applications: —
Weight capacity: 450 Kg and 1350 Kg models.

Pneumatic Positioner
Pneumatic Positioner
Pneumatic Positioner Genesis
Pneumatic Positioner
  • thumbnail image
  • thumbnail image
  • thumbnail image
  • thumbnail image
PT-450 PT-1350
Maximum weight capacity (per station) 450-kilograms 1,350-kilograms
Table diameter 1.5-meters 2.5-meters
Table height .43-meters .5-meters
Pneumatic drive Includes plug-n-play controls for positioner
movement only
Includes plug-n-play controls for positioner
movement only
180-degree index time (fully loaded) 3.0 to 4.0-seconds 4.0 to 5.0-seconds

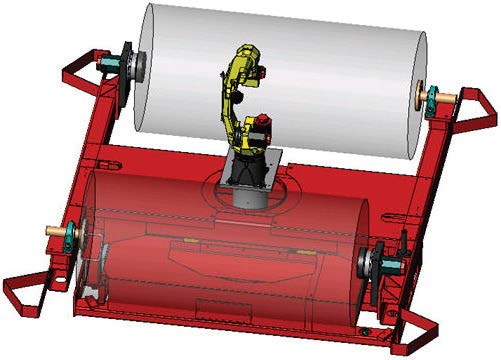

PH-340 PH-900
Maximum weight capacity (per station) 340-kilograms 900-kilograms
Maximum tool length 1.5-meters 3.0-meters
Maximum tool swing diameter 1.0-meters 1.25-meters
Centerline height 1.0-meters 1.0-meters
Pneumatic drive Includes plug-n-play controls for
positioner movement only
Includes plug-n-play controls for
positioner movement only
Minor axis drive motors (2) 8Nm, tapered shaft, 4000 rpm, brake (2) 8Nm, tapered shaft, 4000 rpm, brake
Main 180-degree index time (fully loaded) 3.0-seconds to 4.0-seconds 4.0-seconds to 5.0-seconds

Get a Quote for the Pneumatic Positioners

Download the PDF

Pneumatic Turntable Positioner Advantages

  • Economical solution
  • Easily maintained
  • Utilities through center of table
  • Low profile – ergonomic
