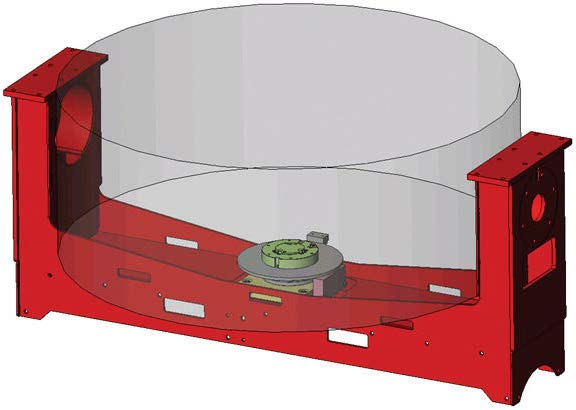

Drop Center

The Drop Center positioner adds an additional axis to a head and tailstock positioner to weld parts that require complex manipulation during the weld cycle. The two-axis make it possible to manipulate a part to achieve “in position” welds.

Applications: —
Weight capacity: 750-4500 Kg.

DC-0.5 (RV110) DC-2 (RV320E) DC-5 (RD320C)
Maximum weight capacity 750-kilograms 1,000-kilograms 1,250-kilograms
Maximum part / tool swing diameter 1.0-meters 2.0-meters 2.3-meters
Maximum part / tool height 0.7-meters 0.8-meters 1.0-meters
Distance from centerline (tool / part center of gravity) to face plate .35-meters .40-meters .50-meters
Servo motor size required 8Nm, tapered shaft, 3000 rpm, brake 12Nm, straight shaft, 3000 rpm, brake 12Nm, straight shaft, 3000 rpm, brake
Allowable tool out of balance torque 250Nm 425Nm 750Nm
180-degree index time 1.8-seconds 2.0-seconds 3.1-seconds
Weld ground Brush Brush Through Center
Overall swing diameter 1.5-meters 2.2-meters 2.5-meters
Requires Genesis Headstock/Tailstock Positioner or equivalent HT-4 (RV320E) HT-7.5 (RD320C) HT-17 Plus (RV900C, 3:1)

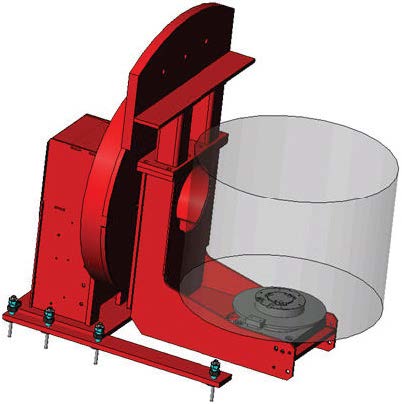

Drop Axis

The Drop Axis positioner adds an additional axis to a headstock to weld parts that require complex manipulation during the weld cycle. The two-axis make it possible to manipulate a part to achieve “in position” welds. The Drop Axis offers substantial robot access to complex parts.

Applications: —
Weight Capacity: 750 to 1,250-kilograms

DA-3 (RV110) DA-5 (RV320E) DA-7 (RD320C)
Maximum weight capacity 750-kilograms 1,000-kilograms 1,250-kilograms
Maximum part / tool swing diameter 1.0-meters 2.0-meters 2.3-meters
Maximum part / tool height 0.7-meters 0.8-meters 1.0-meters
Distance from centerline
(tool / part center of gravity) to face plate
.35-meters .40-meters .50-meters
Servo motor size required
(minor and major axis)
8Nm, tapered shaft,
12Nm, straight shaft
4000 rpm, brake
(2) 12Nm, straight shaft,
3000 rpm, brake
(2) 12Nm, straight shaft,
3000 rpm, brake
Allowable tool out of balance torque 250Nm 425Nm 750Nm
180-degree index time 1.8-seconds 2.0-seconds 3.1-seconds
Weld ground Brush Brush Through Center
Overall swing diameter 1.5-meters 2.2-meters 2.5-meters
