Versa RC3L

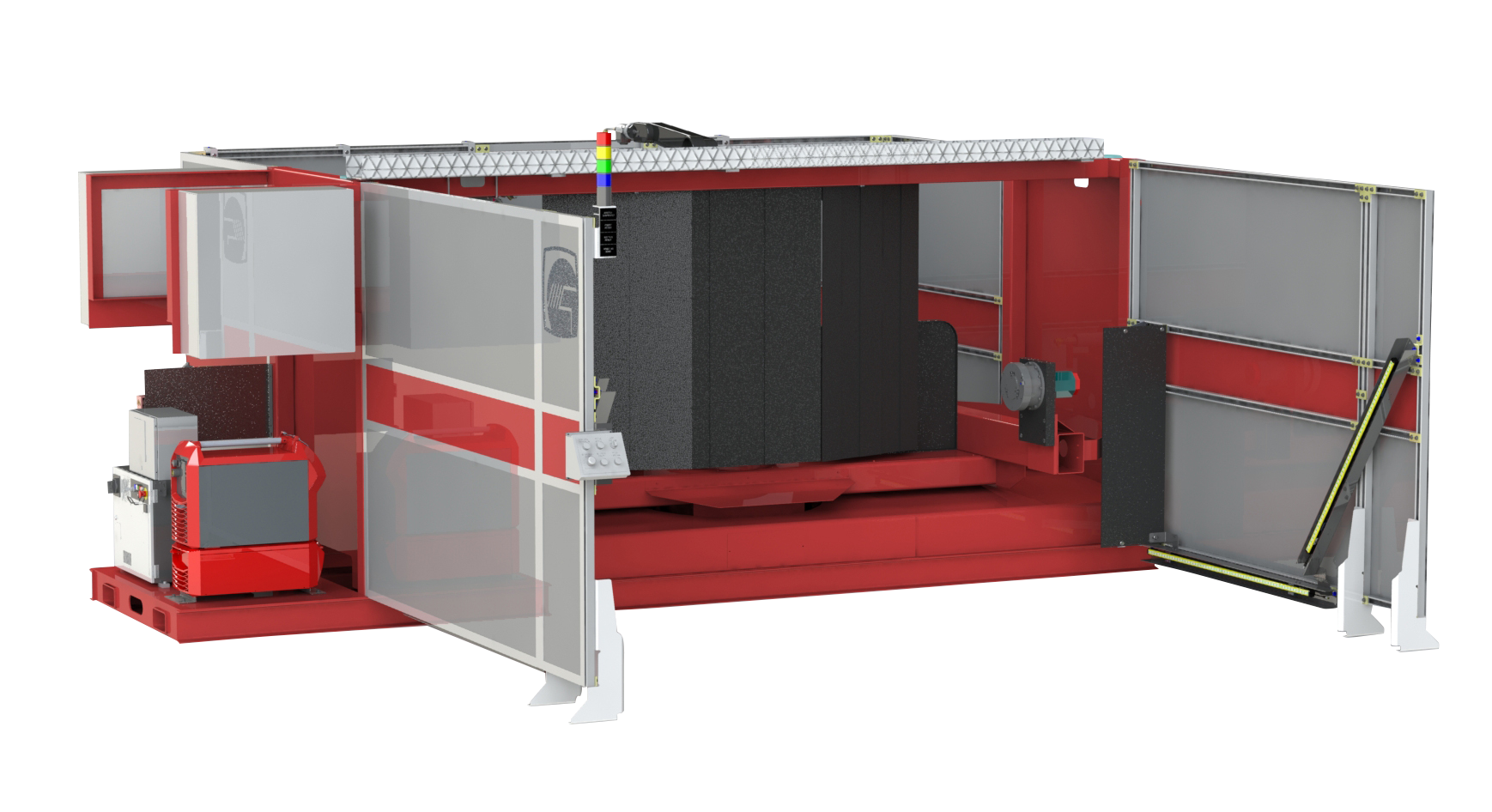

The Genesis Versa RC3L robotic welding workcell features a center mount robot design that maximizes the utilization of the robot work envelope by placing the robot in the center of the three-axis turntable and closer in proximity to the workpiece.

Applications: Welding
Weight capacity: 544 Kg.

  • thumbnail image
  • thumbnail image
  • thumbnail image
  • thumbnail image
  • thumbnail image
Key Specifications
Base Positioner Configuration Main axis – pneumatically driven
Main sweep index time 4.5 to 6.0 seconds
Minor axis – dual servo driven trunnions
Tool length 60-inches (1524-mm)
Tool swing diameter 40-inches (1016-mm)
Weight capacity 1,200-lbs (544-kg)
Base Component Configuration FANUC ArcMate 100iC or Panasonic TA-1400 G3
Lincoln i400 or Miller Auto Axcess 300
Tregaskiss, Binzel or TBi air-cooled through arm torch
Genesis torch alignment package
Safety package (includes light curtains, gate interlock and barriers)
Genesis Allen-Bradley controls package with L1 processor
Rotary ground

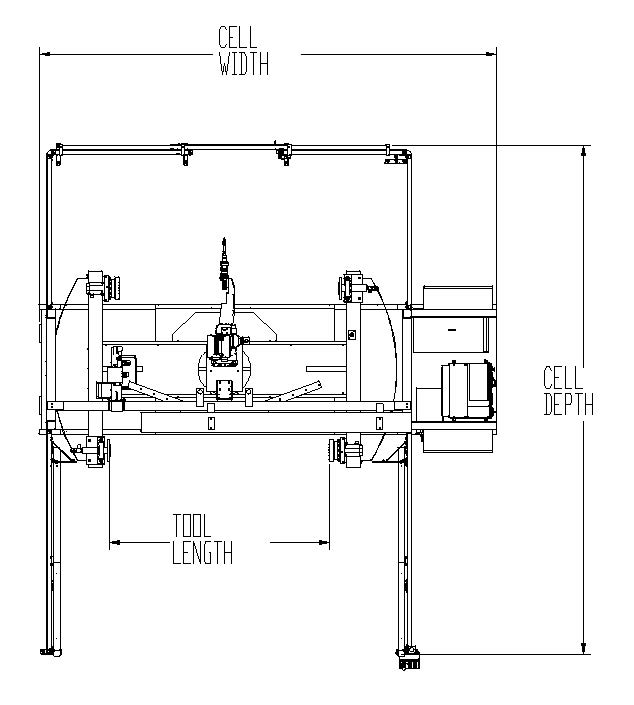

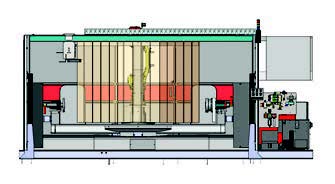

Standard Dimensional Specifications Tool length – 60-inches (1524-mm) to 96-inches (2438-mm)

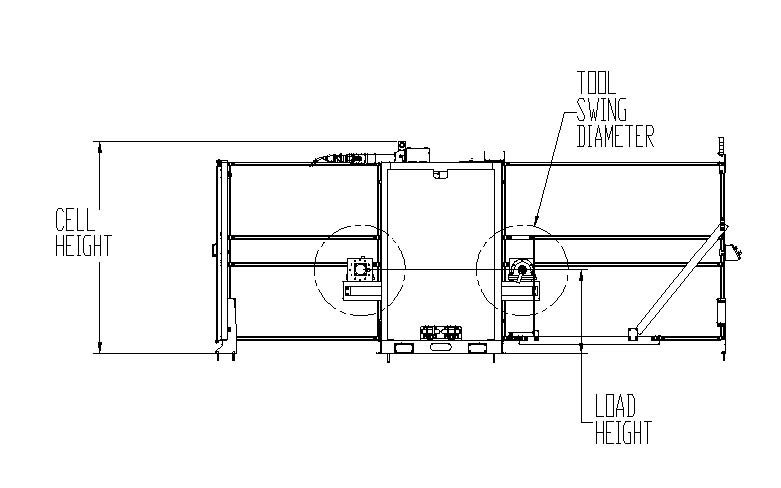

Tool swing diameter – 40-inches (1016-mm) to 48-inches (1219-mm)
Load height – 36-inches (914-mm)
Cell width – 250-inches (6350-mm) to 275-inches (6985-mm)
Cell depth – 245-inches (6223-mm) to 271-inches (6883-mm)
Cell height – 93-inches (2362-mm)
Standard Capacity Specifications Weight capacity –  1,000-lbs (453-kg)
Engineering specifications for 1,000-lbs capacity per station
– Gearbox rated torque 4705Nm
– Gearbox ratio 253:1
– Gearbox maximum moment 20,580Nm
– Motor maximum RPM 4,000
– Motor torque output 18Nm
– Nominal acceleration .5 seconds
– 180-degree index time 5.0 seconds
Standard Platform Options Tool length 72-inches, 84-inches, 96-inches
Tool Swing diameter 48-inch
Exposed power track cable carrier system
Smoke hood and extraction system
Off-line programming
Installation
Training programs (basic, advanced, maintenance, off-line, CRAW)
Intelligence CenterTM
Standard Component Options Robot models: FANUC, Panasonic, Motoman
Process gear: Miller, Lincoln, Fronius, Thermadyne, Hypertherm
Welding torches: Tregaskiss, Binzel, TBi, Fronius
Torch cleaners: Tregaskiss, Binzel, TBi
Controls: PanelView 1000+ Compact
Robot Workcell Selector

Get a Quote for the Versa RC3L

Download the PDF

Key Features

Productivity

  • Fast index time reduces overall weld
    cycle time
  • Multiple robot configurations
  • Design allows automated unload of parts from weld station

Functionality

  • Quick installation – robot, positioner and controls on unitized base
  • High utilization of robot work envelope with center robot design
  • Safer robot programming with center
    mounted robot
  • Center mount robot design reduces required floor space
  • Cost efficient pneumatic main sweep design

Reliability

  • Pre-engineered, proven design
  • Single source responsibility
  • 24-hour support service

Flexibility

  • Able to accommodate large tool lengths, swing diameters and high weight capacity
  • Easily configured to meet application requirements
